About This

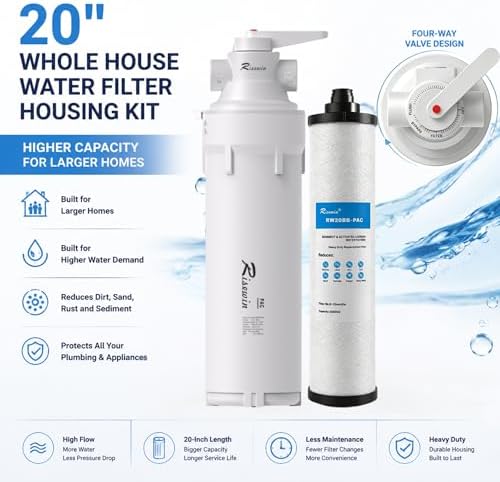

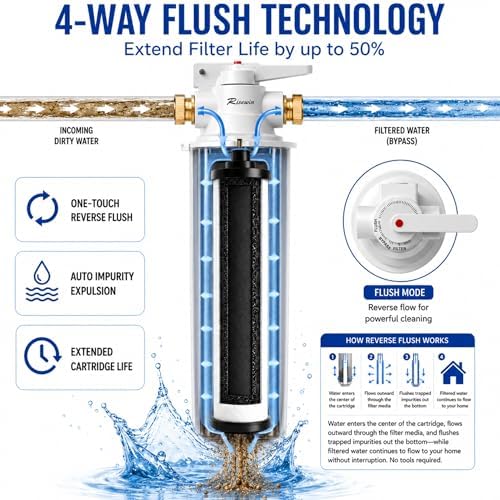

• 【4-Mode Bypass for Easier Filter Changes】Tired of shutting off your main water line every time you replace a cartridge? This 20-inch whole house water filter housing features Filter, Flush, Bypass, and Shut-off modes. Switch to Bypass mode to change the cartridge quickly without interrupting the entire home water line, while Flush mode helps rinse trapped sediment from the housing
• 【16 GPM High Flow for Larger Water Demand】Designed for higher-demand systems, this 20-inch sediment filter housing supports up to 16 GPM flow for large homes, multi-bathroom properties, RV water lines, garden supply, farm wells, and light commercial applications. It helps maintain strong water flow for showers, faucets, water heaters, washing machines, and downstream filtration equipment
• 【Freeze-Resistant Heavy-Duty Housing】Built with reinforced cold-resistant engineering material, the Risewin filter housing is designed for tough installation environments such as basements, garages, pump houses, RV setups, and outdoor utility areas. It is tested for cold resistance down to -24°C and rated with 600 PSI burst pressure to help handle pressure fluctuations and seasonal temperature changes

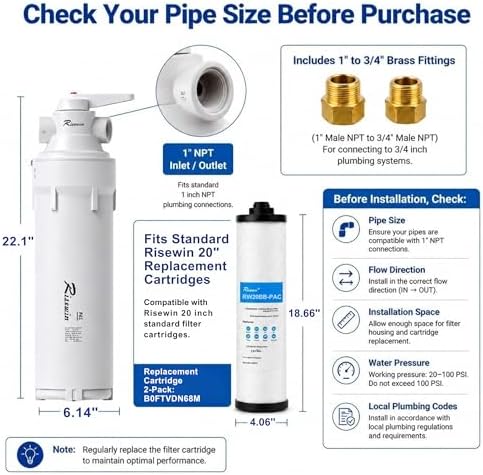

• 【Complete Kit with 1" NPT and 3/4" Adapter】Ready for a cleaner and simpler installation experience, this kit includes the 20-inch housing, 5-micron cartridge, stainless steel mounting bracket, drain valve, housing wrench, head wrench, screws, PTFE tape, O-rings, and brass 1" NPT to 3/4" quick-connect adapters. It is built for DIY homeowners, property managers, RV users, and installers.
• 【5 Micron Sediment and Carbon Pre-Filtration】The included 3-in-1 cartridge combines PP sediment filtration, activated carbon, and coconut shell carbon to help reduce sand, silt, rust, visible particles, chlorine odor, and unpleasant taste. Use it as a first-stage whole house pre-filter before water softeners, water heaters, washing machines, faucets, and other household water appliances
• Tips: The brass fitting we provide supports 1" to 3/4" pipe connections. Please carefully check the diameter of your inlet and outlet pipes for easy DIY install of this 10 inch whole house pre filter system. Additionally, this system already includes one all-in-one composite filter cartridge (PP sediment layer, activated carbon and coconut shell) for well water & city water use, ready for immediate out-of-box use. Replacement cartridges are available in a 2-pack set; please refer to ASIN:B0FTVDN68M for full purchase details

Overview

• Brand : Risewin
• Special Feature : 1" NPT Ports for Main Line Installation, 20 inch Housing Kit with 3-in-1 Cartridge Included, 20" High Capacity for Whole House Pre-Filtration, 4-Way Bypass Valve for No Main Water Shutoff, Reinforced Housing with Triple-Seal Leak-Resistant Design 1" NPT Ports for Main Line Installation, 20 inch Housing Kit with 3-in-1 Cartridge Included, 20" High Capacity for Whole House Pre-Filtration, 4-Way Bypass Valve for No Main Water Shutoff, Reinforced Housing with Triple-Seal Leak-Resistant Design
• Product Dimensions : 6.14"L x 6.14"W x 23"H
• Material : Food-Grade Reinforced Polypropylene
• Capacity : 5200 gallons
• Included Components : Housing, Cartridge, Bracket, Wrench, O-Rings, Installation Hardware, Manual
• Package Information : Canister
• Installation Type : Mounted
• Purification Method : Activated Carbon, Sedimentation
• Item Weight : 12.5 pounds
